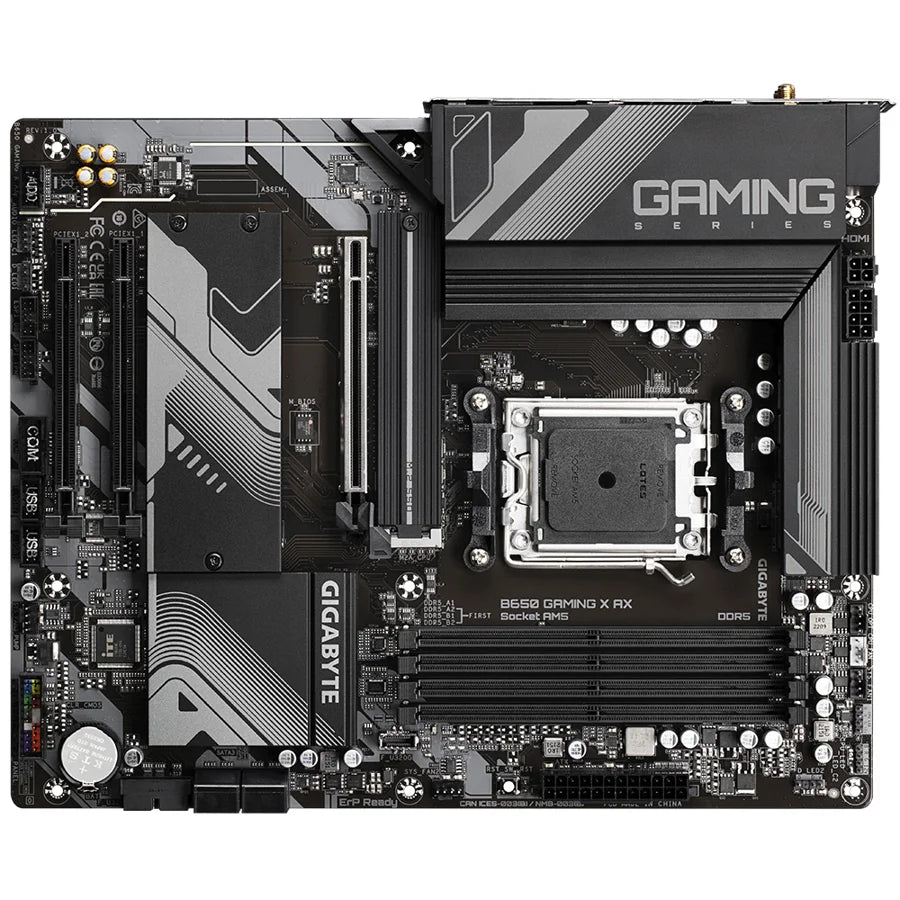

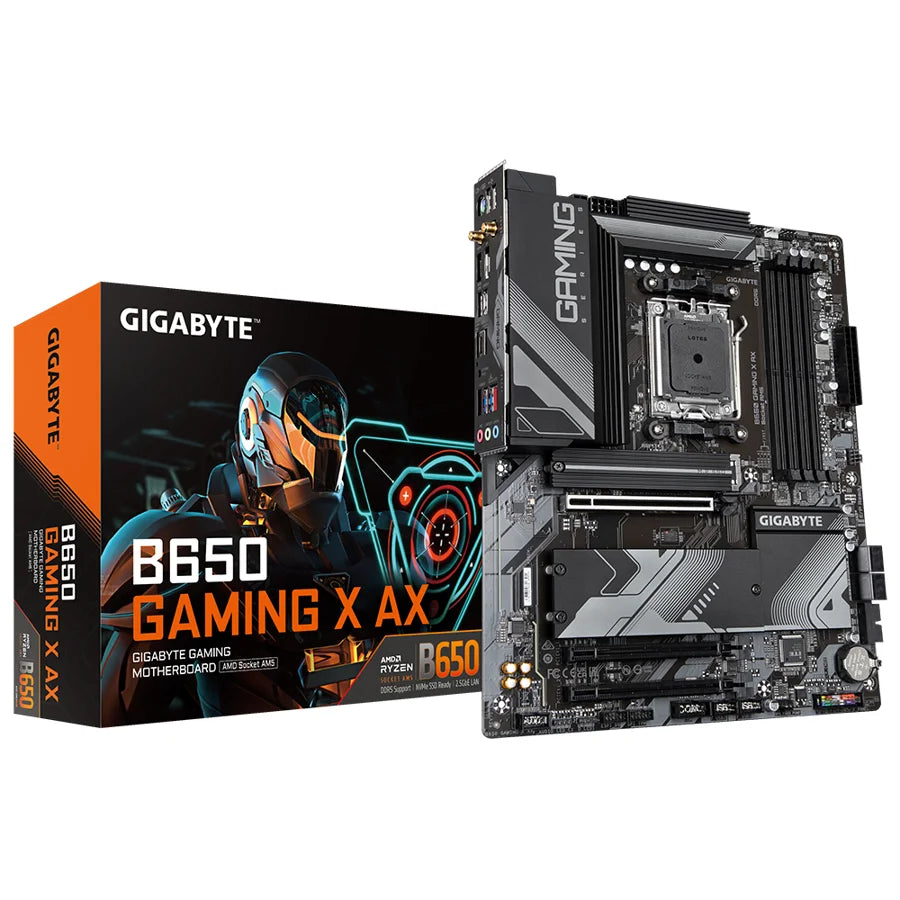

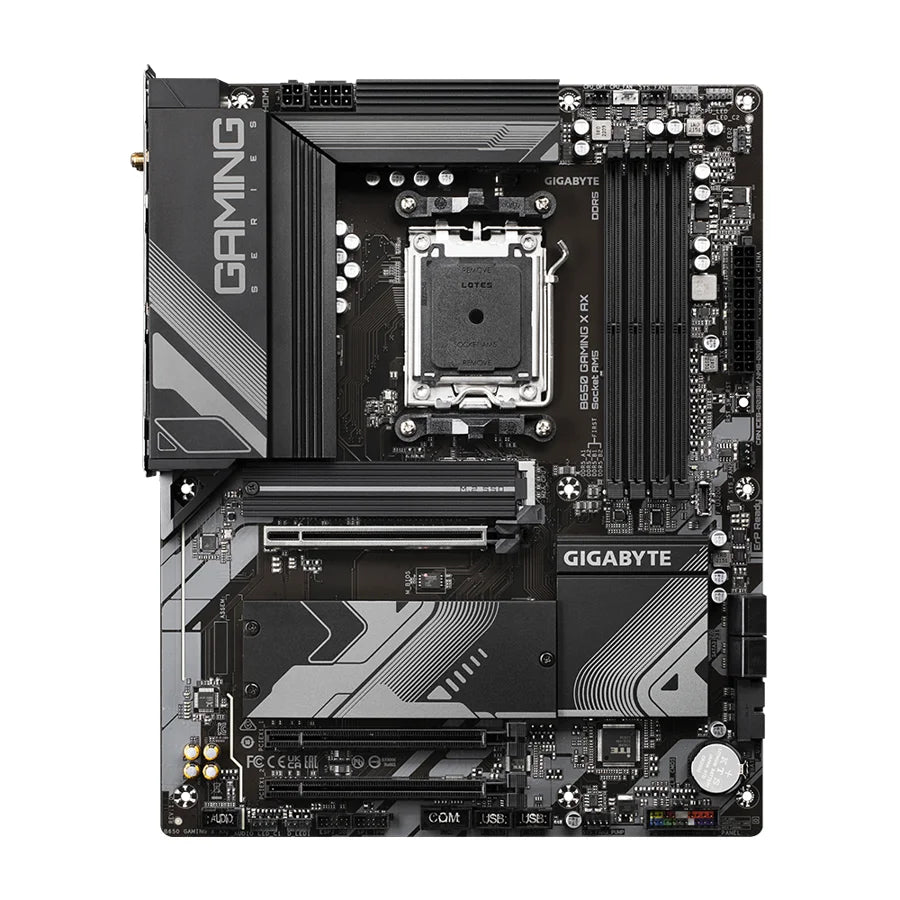

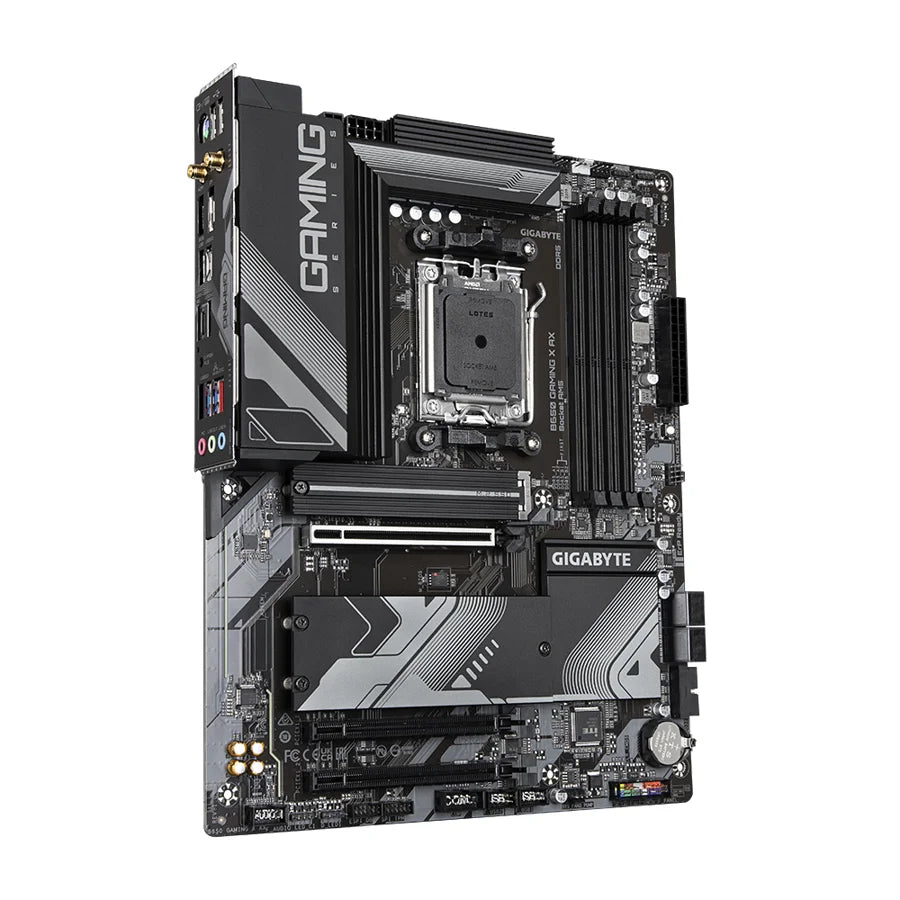

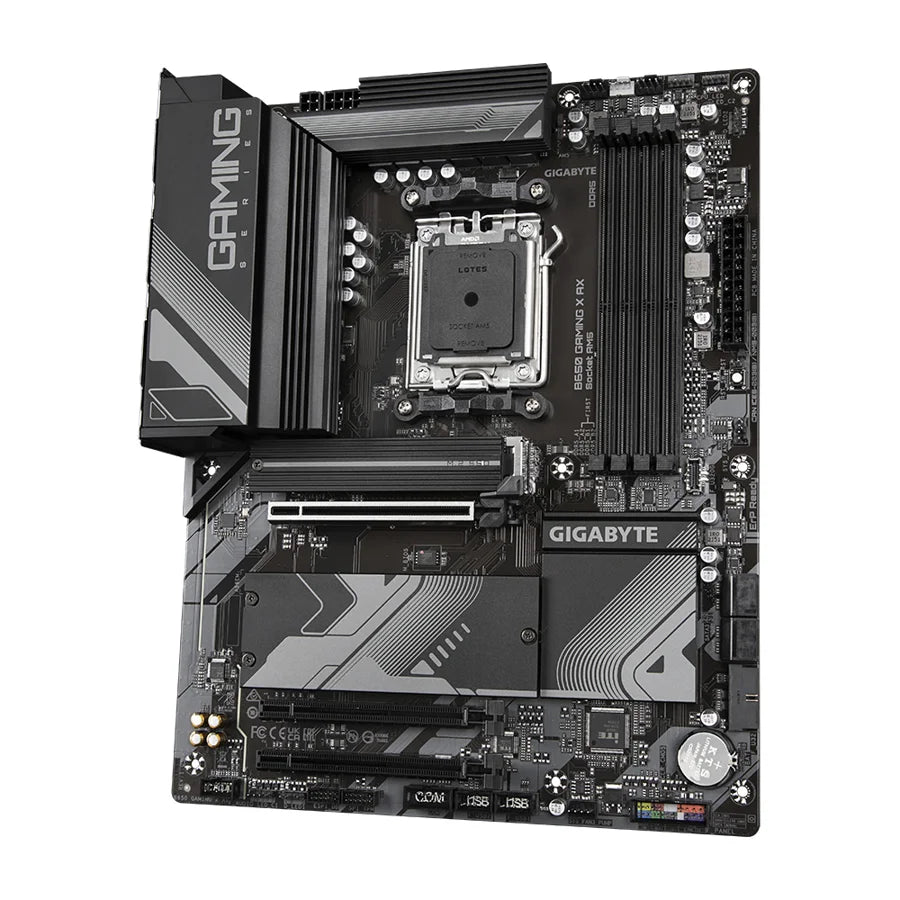

B650 GAMING X AX Aorus Componentes Informáticos Panamá

Gigabyte - Motherboard - ATX - Socket AM5 - AMD B650 - para Ryzen 7 - None- Panamá - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Specifications

Processor

• Processor manufacturer: AMD
• Processor socket: Socket AM5
• Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
• Supported processor sockets: Socket AM5

Memory

• Supported memory types: DDR5-SDRAM
• Number of memory slots: 4
• Memory slots type: DIMM
• Memory channels: Dual-channel
• ECC сompatibility: Non-ECC
• Supported memory clock speeds: 8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800,4400 MHz
• Supported memory clock speed (max): 8000 MHz
• Maximum internal memory: 256 GB
• Unbuffered memory: Yes
• Maximum internal memory per slot: 64 GB

Storage controllers

• Supported storage drive types: HDD & SSD
• Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III
• Number of HDDs supported: 4
• Number of storage drives supported: 7
• RAID support: Yes
• RAID levels: 0, 1, 10

Graphics

• Parallel processing technology support: Not supported
• Maximum resolution: 4096 x 2160 pixels
• HDCP: Yes
• DirectX version: 12.0

Internal I/O

• USB 2.0 connectors: 2
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
• USB 3.2 Gen 2x2 connectors: 1
• Number of SATA III connectors: 4
• Front panel audio connector: Yes
• Front panel connector: Yes
• ATX Power connector (24-pin): Yes
• CPU fan connector: Yes
• Number of CPU fan connectors: 2
• Number of chassis fan connectors: 3
• Peripheral (Molex) power connectors (4-pin): 1
• EPS power connector (8-pin): Yes
• Number of EPS power connectors (8-pin): 1
• TPM connector: Yes
• Serial port headers: 1
• 12V power connector: Yes
• Number of water pump connectors: 2
• RGB LED pin header: Yes
• Number of RGB LED pin headers: 5

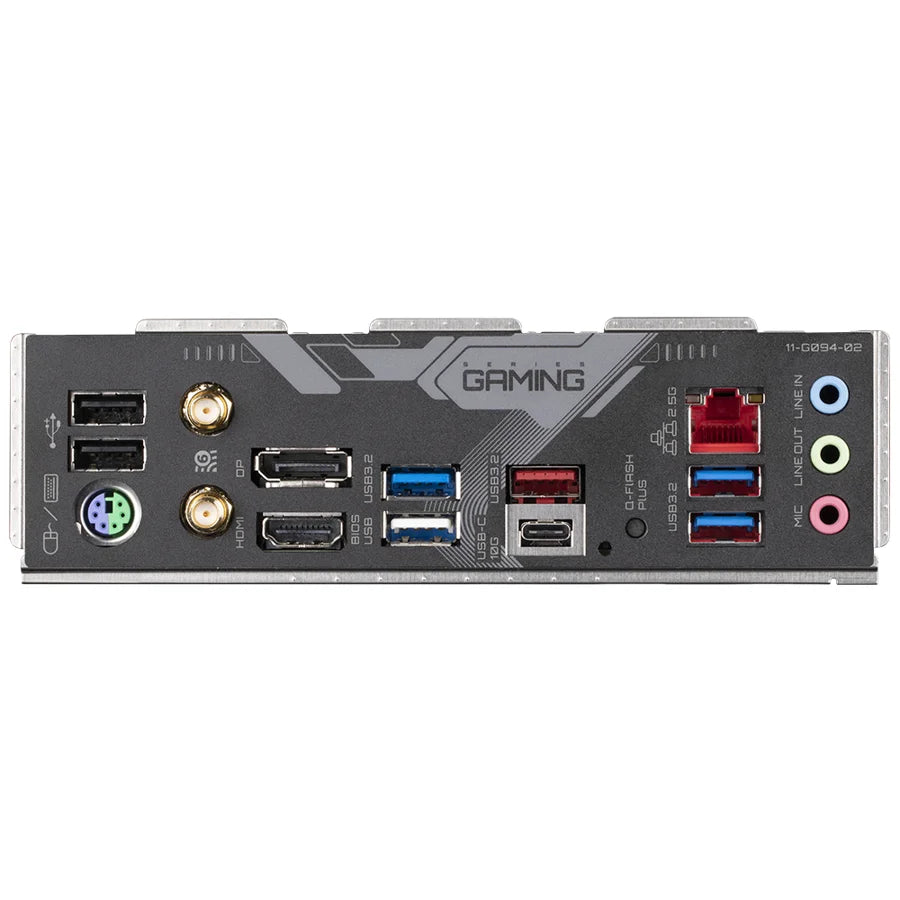

Rear panel I/O ports

• USB 2.0 ports quantity: 3
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• DisplayPorts quantity: 1
• DisplayPort version: 1.4
• Headphone outputs: 1
• Line-in: Yes
• Microphone in: Yes
• WiFi-AP antenna jack: 2

Network

• Ethernet LAN: Yes
• Ethernet interface type: 2.5 Gigabit Ethernet
• LAN controller: Realtek RTL8125
• Wi-Fi: Yes
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
• WLAN controller model: Realtek RTL8852CE
• Bluetooth: Yes
• Bluetooth version: 5.3

Features

• Motherboard chipset: AMD B650
• Audio chip: Realtek ALC897
• Audio output channels: 7.1 channels
• Product colour: Brown
• PC health monitoring: Fan, Temperature, Voltage, Water cooling
• Component for: PC
• Motherboard form factor: ATX
• Motherboard chipset family: AMD
• Cooling type: Passive
• Power source type: ATX
• Windows operating systems supported: Windows 10 x64, Windows 11 x64

Expansion slots

• PCI Express x16 (Gen 3.x) slots: 2
• PCI Express x16 (Gen 4.x) slots: 1
• Number of M.2 (M) slots: 3
• 1st M.2 largest key size: 25110
• 1st M.2 highest PCI Express generation: 5.0
• 2nd M.2 largest key size: 22110
• 2nd M.2 highest PCI Express generation: 4.0
• 3rd M.2 largest key size: 25110
• 3rd M.2 highest PCI Express generation: 4.0

BIOS

• BIOS type: UEFI AMI
• BIOS memory size: 256 Mbit
• ACPI version: 5.0
• Clear CMOS jumper: Yes
• Desktop Management Interface (DMI) version: 2.7
• System Management BIOS (SMBIOS) version: 2.7

Logistics data

• Country of origin: China
• Products per shipping (inner) case: 1 pc(s)

Battery

• Battery weight: 3 g
• Lithium weight per battery: 0.07 g
• Number of battery cells: 1
• Battery technology: Lithium-Manganese Dioxide (LiMnO2)
• Battery type: CR2032

Packaging data

• Package width: 335 mm
• Package depth: 270 mm
• Package height: 80 mm
• Package weight: 2.2 kg

Weight & dimensions

• Width: 305 mm
• Depth: 244 mm
• Height: 35 mm

Packaging content

• Batteries included: Yes
• Antenna included: Yes
• Screws included: Yes
• Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software

Technical details

• Warranty period: 3 year(s)
