B760 A ELITE AX DDR4 Gigabyte Componentes Informáticos Panamá

Gigabyte - Motherboard - ATX - LGA1700 Socket - Intel B760 - para Celeron / para Core i3 / para Core i5 / para Core i7 / para Pentium - Intel HD Graphics - None- Panamá - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Specifications

Processor

• Processor socket: LGA 1700
• Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold
• Supported processor sockets: LGA 1700
• Maximum internal memory supported by processor: 128 GB

Memory

• Supported memory types: DDR4-SDRAM
• Number of memory slots: 4
• Memory slots type: DIMM
• Memory channels: Dual-channel
• ECC сompatibility: Non-ECC
• Supported memory clock speeds: 2133,2400,2666,2933,3000,3200,3300,3333,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz
• Supported memory clock speed (max): 5333 MHz
• Maximum internal memory: 128 GB
• Unbuffered memory: Yes

Storage controllers

• Supported storage drive types: HDD & SSD
• Supported storage drive interfaces: M.2, SATA III
• Number of HDDs supported: 4
• Number of storage drives supported: 7
• RAID support: Yes
• RAID levels: 0, 1, 5, 10

Graphics

• Parallel processing technology support: Not supported
• On-board graphics card: Yes
• Graphics card family: Intel
• Graphics card: HD Graphics
• Maximum resolution: 4096 x 2304 pixels
• HDCP: Yes
• DirectX version: 12.0
• On-board graphics card model: Intel® HD Graphics

Internal I/O

• USB 2.0 connectors: 4
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
• USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
• Number of SATA III connectors: 4
• Total number of SATA connectors: 4
• Front panel audio connector: Yes
• Front panel connector: Yes
• ATX Power connector (24-pin): Yes
• Power fan connector: Yes
• CPU fan connector: Yes
• Number of chassis fan connectors: 4
• EPS power connector (8-pin): Yes
• TPM connector: Yes
• 12V power connector: Yes
• RGB LED pin header: Yes

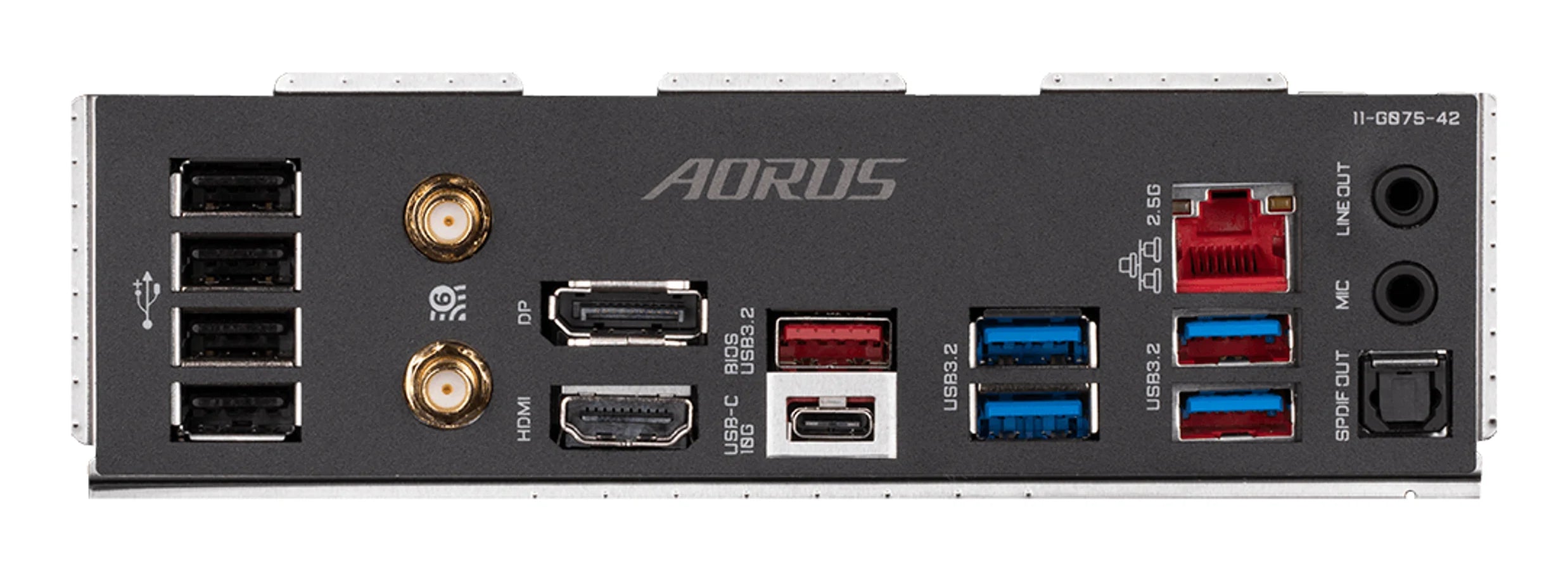

Rear panel I/O ports

• USB 2.0 ports quantity: 4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 2.0
• DisplayPorts quantity: 1
• DisplayPort version: 1.2
• Digital audio optical out: 1

Network

• Ethernet LAN: Yes
• Ethernet interface type: 2.5 Gigabit Ethernet
• Wi-Fi: Yes
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
• WLAN controller model: Intel Wi-Fi 6E AX211
• Bluetooth: Yes
• Bluetooth version: 5.3

Features

• Motherboard chipset: Intel B760 Express
• Audio output channels: 7.1 channels
• Product colour: Black
• PC health monitoring: Fan, Temperature, Voltage, Water cooling
• Component for: PC
• Motherboard form factor: ATX
• Motherboard chipset family: Intel
• Windows operating systems supported: Windows 10 x64, Windows 11 x64

Expansion slots

• PCI Express x16 (Gen 3.x) slots: 2
• PCI Express x16 (Gen 4.x) slots: 1
• Number of M.2 (M) slots: 3

BIOS

• BIOS type: EFI AMI
• BIOS memory size: 256 Mbit
• ACPI version: 5.0
• Clear CMOS jumper: Yes
• Desktop Management Interface (DMI) version: 2.7
• System Management BIOS (SMBIOS) version: 2.7

Logistics data

• Country of origin: China
• Products per shipping (inner) case: 1 pc(s)

Battery

• Battery weight: 3 g
• Lithium weight per battery: 0.07 g
• Number of battery cells: 1
• Battery technology: Lithium-Manganese Dioxide (LiMnO2)
• Battery type: CR2032

Packaging data

• Package width: 335 mm
• Package depth: 270 mm
• Package height: 80 mm
• Package weight: 2.17 kg

Weight & dimensions

• Width: 305 mm
• Depth: 244 mm
• Height: 35 mm

Packaging content

• Batteries included: Yes
• Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software

Technical details

• Warranty period: 3 year(s)
