R470271_6505P432 Dell Computadores Panamá

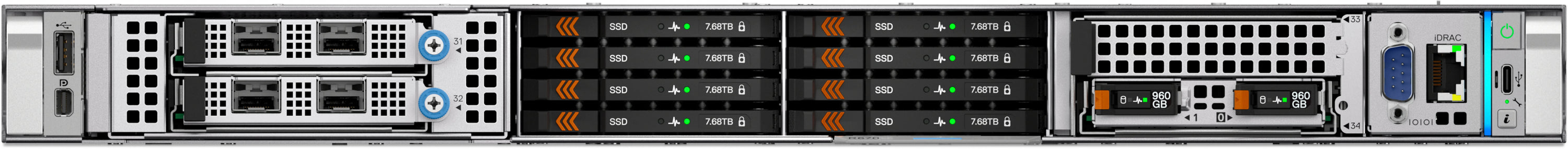

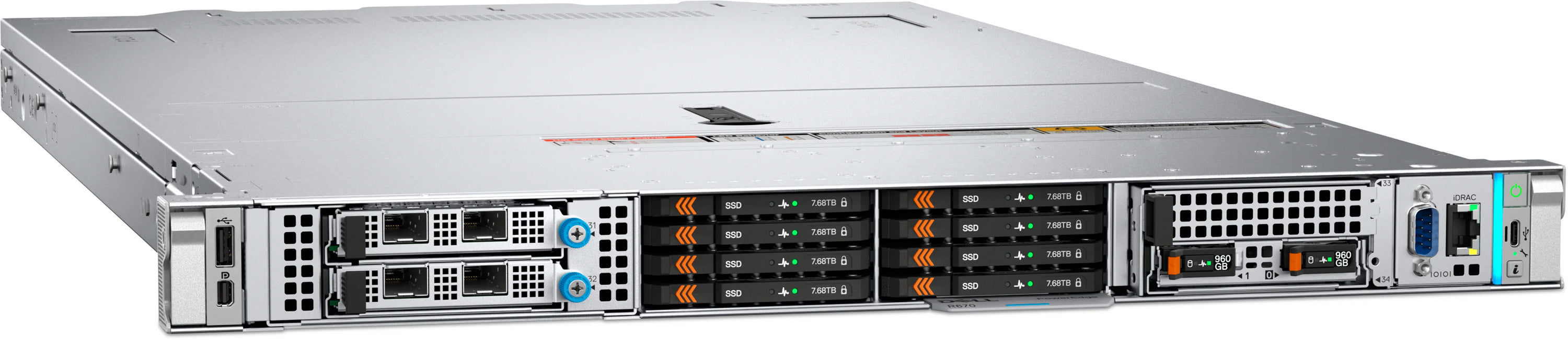

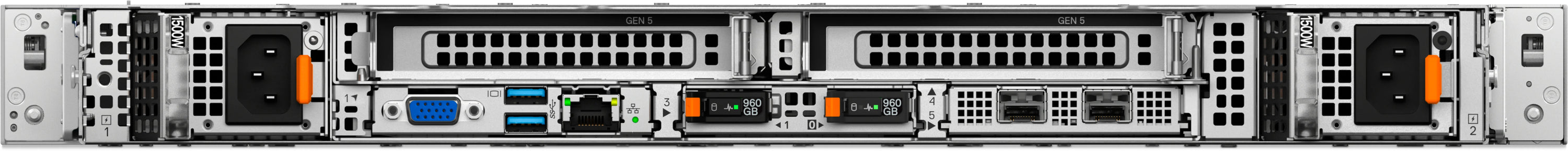

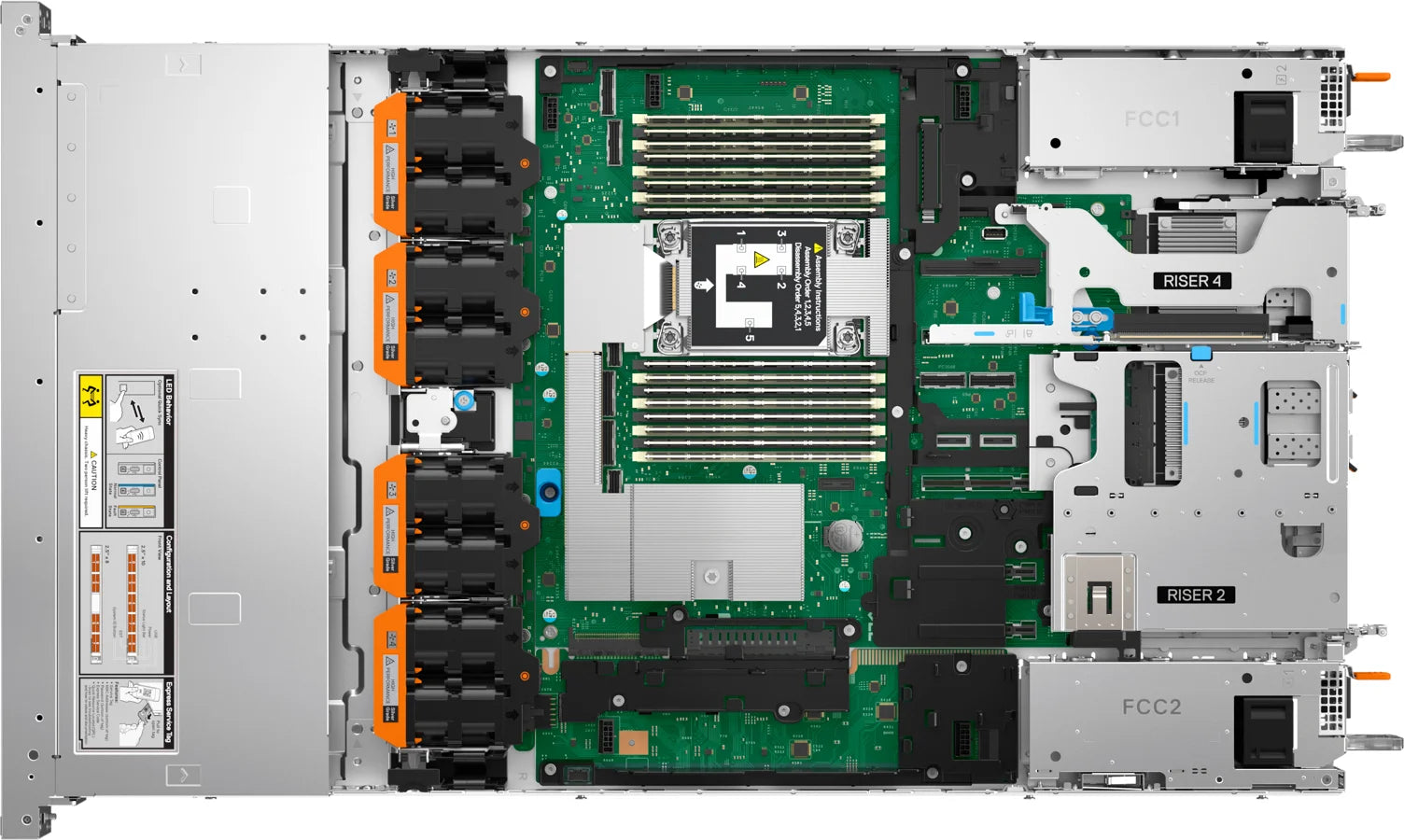

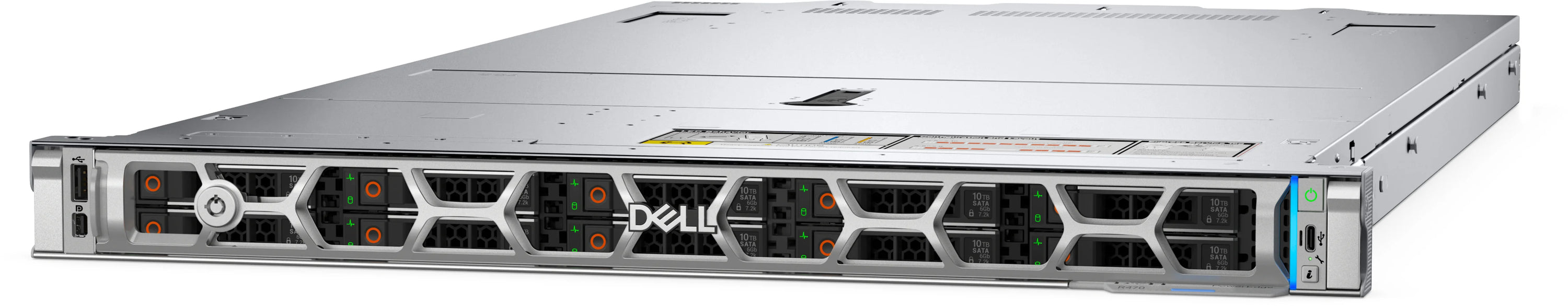

Dell - Server - Rack-mountable - Intel Xeon 6505P - 480 GB Hard Drive Capacity - R470 R470271_6505P432- Panamá -

Specifications

Processor

• Processor manufacturer: Intel
• Processor family: Intel Xeon 6
• Processor model: 6505P
• Processor frequency: 2.2 GHz
• Processor boost frequency: 4.1 GHz
• Processor cores: 12
• Processor cache: 48 MB
• Number of processors installed: 1
• Thermal Design Power (TDP): 150 W
• System bus rate: 24 GT/s
• Processor threads: 24
• Memory types supported by processor: DDR5-SDRAM
• Memory clock speeds supported by processor: 6400 MHz

Memory

• Internal memory: 32 GB
• Internal memory type: DDR5-SDRAM
• Buffered memory type: Registered (buffered)
• Memory ranking: 2
• Memory slots: 16x DIMM

Storage

• Total storage capacity: 480 GB
• Number of SSDs installed: 1
• SSD capacity: 480 GB
• SSD interface: SATA III
• SSD size: 2.5"
• Supported SSD sizes: 2.5"
• Number of SSDs supported: 8
• RAID support: Yes
• Supported RAID controllers: PERC H965i
• Hot-Plug support: Yes
• Optical drive type: No
• Drive writes per day (DWPD): 1

Network

• Networking features: BASE-T Adapter
• LAN controller: Broadcom 57412
• Ethernet LAN: Yes
• Cabling technology: 10/100/1000Base-T(X)
• Ethernet interface type: 10 Gigabit Ethernet

Ports & interfaces

• Ethernet LAN (RJ-45) ports: 1
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
• VGA (D-Sub) ports quantity: 1

Expansion slots

• PCI Express x16 (Gen 5.x) slots: 2

Design

• Chassis type: Rack (1U)
• Product colour: Grey

Performance

• Remote administration: iDRAC10, Enterprise 17G

Software

• Operating system installed: No
• Compatible operating systems: Canonical Ubuntu Server LTS RedHat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi Windows Server Windows Server Datacenter

Power

• Redundant power supply (RPS) support: Yes
• Power supply: 1100 W
• Number of redundant power supplies installed: 2
• Power supply input voltage: 100 - 240 V

Certificates

• 80 PLUS certification: 80 PLUS Titanium

Carbon footprint

• Total carbon footprint (kg of CO2e): 2549
• Total carbon emissions, standard deviation (kg of CO2e): 1827
• Carbon emissions, manufacturing (kg of CO2e): 553.13
• Carbon emissions, logistics (kg of CO2e): 170.78
• Carbon emissions, energy usage (kg of CO2e): 1799.59
• Carbon emissions, end-of-life (kg of CO2e): 22.94
• PAIA version: PAIA 1.4.2, 2025

Weight & dimensions

• Width: 482 mm
• Height: 42.8 mm

Packaging content

• Packaging content: Riser Config 6 NEMA 5-15P to C13 Wall Plug, 125 Volt, 15 AMP, 10 Feet (3m)

Other features

• Data transfer rate: 6 Gbit/s
• Bytes per sector: 512e
• Target workload: Mixed Use (MU)
• Open Compute Project (OCP): 3.0 NIC +Sec
