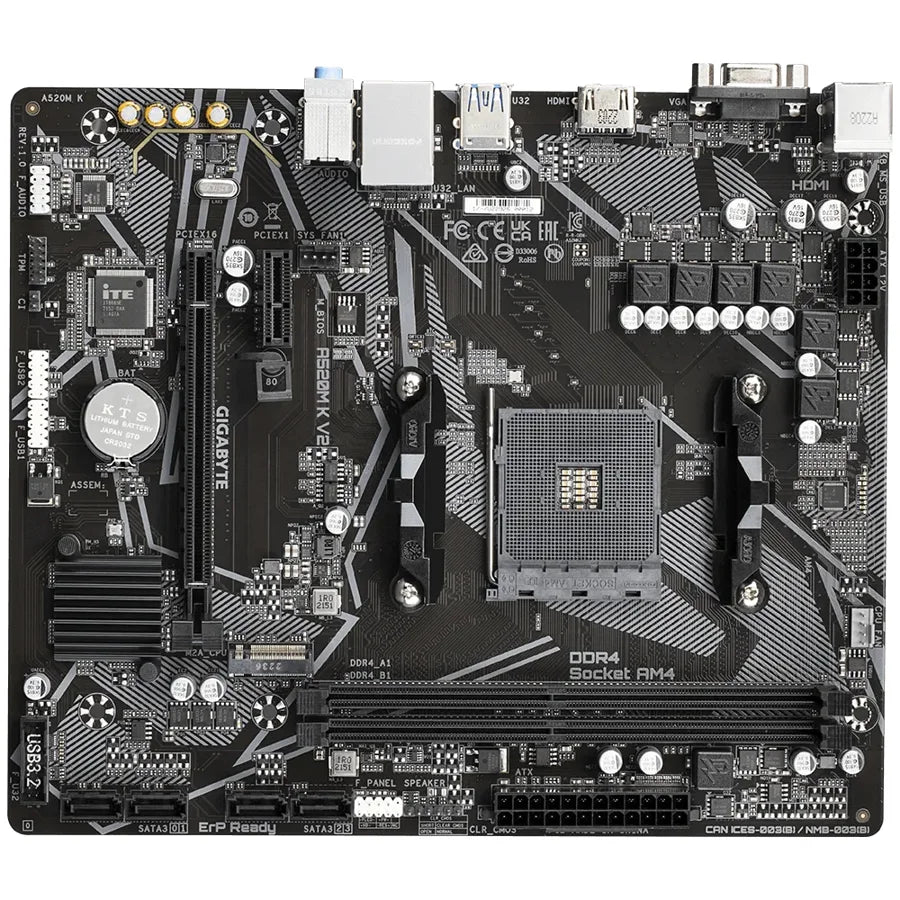

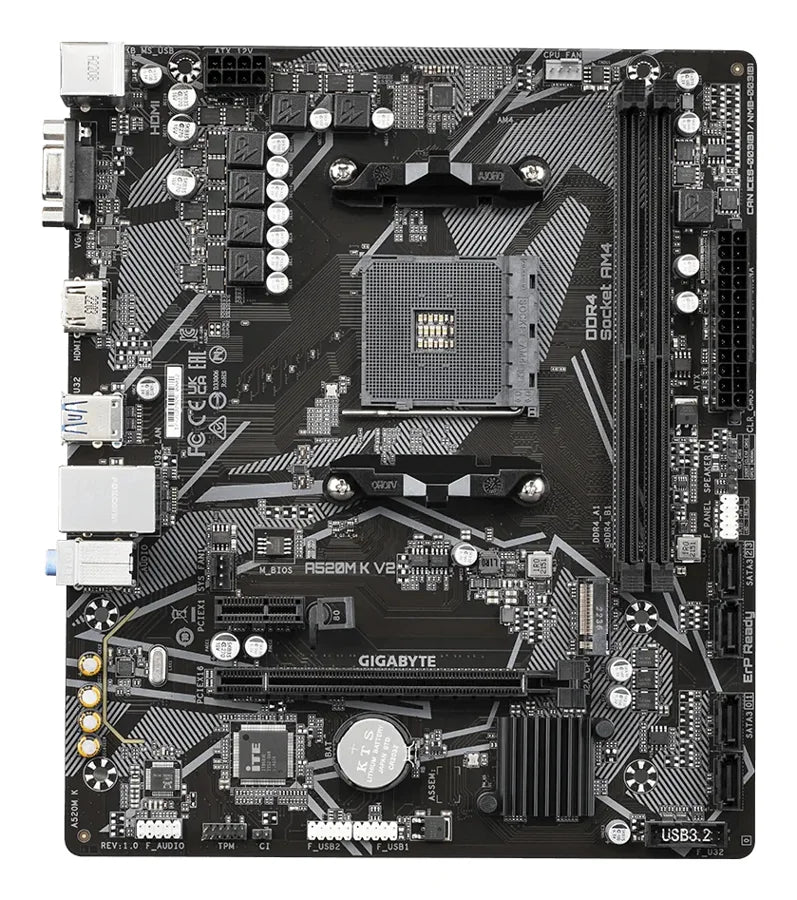

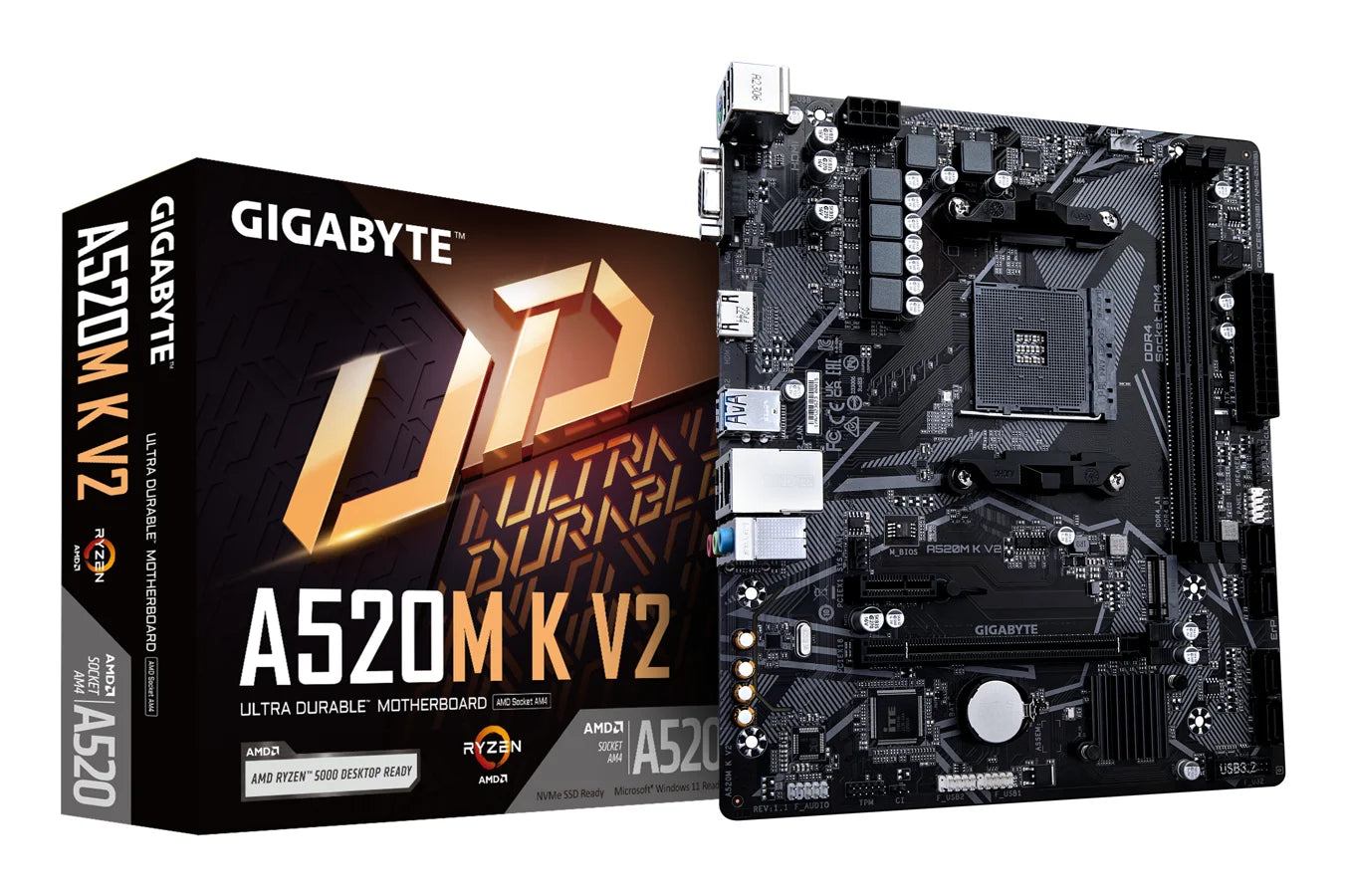

Gigabyte - Motherboard - Micro ATX - Socket AM4 - AMD A520 - para Ryzen 5 / para Ryzen 3 / para Ryzen 7 - None - A520M K V2- Panamá - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

Specifications

Processor

• Processor manufacturer: AMD
• Processor socket: Socket AM4
• Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 5000 Series
• Supported processor sockets: Socket AM4

Memory

• Supported memory types: DDR4-SDRAM
• Number of memory slots: 2
• Memory slots type: DIMM
• Memory channels: Dual-channel
• ECC сompatibility: ECC & Non-ECC
• Supported memory clock speeds: 2133,2400,2667,2933,3200,3400,3466,3600,3733,3866,4000,4133,4266,4400,4600,4800,5100 MHz
• Supported memory clock speed (max): 5100 MHz
• Maximum internal memory: 64 GB
• Unbuffered memory: Yes

Storage controllers

• Supported storage drive types: HDD & SSD
• Supported storage drive interfaces: M.2, SATA III
• Number of storage drives supported: 5
• RAID support: Yes
• RAID levels: 0, 1, 10

Graphics

• Parallel processing technology support: Not supported
• Maximum resolution: 4096 x 2160 pixels
• HDCP: Yes

Internal I/O

• USB 2.0 connectors: 2
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
• Number of SATA III connectors: 4
• Front panel audio connector: Yes
• Front panel connector: Yes
• ATX Power connector (24-pin): Yes
• CPU fan connector: Yes
• Chassis intrusion connector: Yes
• EPS power connector (8-pin): Yes
• TPM connector: Yes
• 12V power connector: Yes

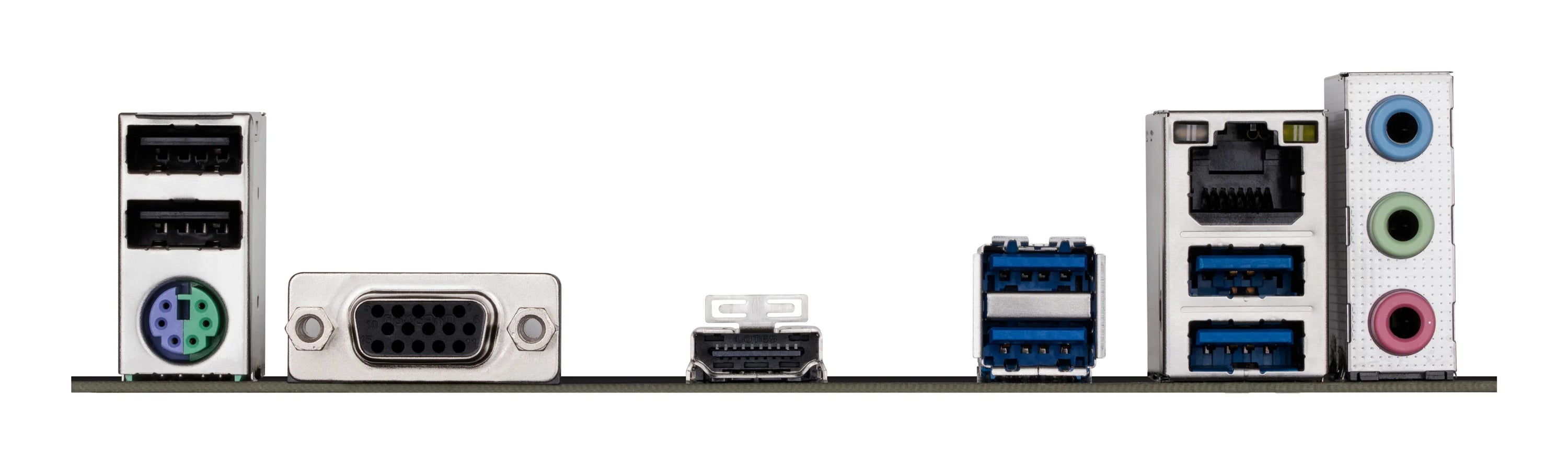

Rear panel I/O ports

• USB 2.0 ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
• Ethernet LAN (RJ-45) ports: 1
• PS/2 ports quantity: 1
• VGA (D-Sub) ports quantity: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Headphone outputs: 3
• Microphone in: Yes
• USB connector type: USB Type-A

Network

• Ethernet LAN: Yes
• Ethernet interface type: Gigabit Ethernet
• Wi-Fi: No

Features

• Motherboard chipset: AMD A520
• Audio output channels: 7.1 channels
• PC health monitoring: Fan, Temperature, Voltage
• Component for: PC
• Motherboard form factor: micro ATX
• Motherboard chipset family: AMD
• Windows operating systems supported: Windows 10 x64, Windows 11 x64

Expansion slots

• PCI Express x1 slots: 1
• PCI Express x16 slots: 1
• Number of M.2 (M) slots: 1

BIOS

• BIOS type: UEFI AMI
• BIOS memory size: 128 Mbit
• ACPI version: 5.0
• Clear CMOS jumper: Yes
• Desktop Management Interface (DMI) version: 2.7
• System Management BIOS (SMBIOS) version: 2.7

Logistics data

• Country of origin: China
• Products per shipping (inner) case: 1 pc(s)

Battery

• Battery weight: 3 g
• Lithium weight per battery: 0.07 g
• Number of battery cells: 1
• Battery technology: Lithium-Manganese Dioxide (LiMnO2)
• Battery type: CR2032

Packaging data

• Package width: 265 mm
• Package depth: 235 mm
• Package height: 52 mm
• Package weight: 675 g

Weight & dimensions

• Width: 233 mm
• Depth: 198 mm
• Height: 35 mm

Packaging content

• Cables included: SATA
• Batteries included: Yes
• Bundled software: Norton Internet Security

Technical details

• Warranty period: 3 year(s)
