PRO H510M-B MSI Componentes Informáticos Panamá

MSI PRO H510M-B - Placa base - micro ATX - Socket LGA1200 - H510 Chipset - USB 3.2 Gen 1 - Gigabit LAN - Tarjeta gráfica (CPU necesaria) - HD Audio (8-canales)- Panamá -

Specifications

Processor

• Processor manufacturer: Intel
• Processor socket: LGA 1200 (Socket H5)
• Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold

Memory

• Supported memory types: DDR4-SDRAM
• Number of memory slots: 2
• Memory slots type: DIMM
• Memory channels: Dual-channel
• ECC сompatibility: Non-ECC
• Supported memory clock speeds: 2133,2400,2666,2933 MHz
• Maximum internal memory: 64 GB
• Unbuffered memory: Yes

Storage controllers

• Supported storage drive types: HDD & SSD
• Supported storage drive interfaces: M.2, SATA III
• Number of HDDs supported: 4

Internal I/O

• USB 2.0 connectors: 4
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
• Number of SATA connectors: 4
• Front panel audio connector: Yes
• Front panel connector: Yes
• CPU fan connector: Yes
• Number of chassis fan connectors: 2
• Chassis intrusion connector: Yes
• Number of COM connectors: 1
• TPM connector: Yes
• RGB LED pin header: Yes

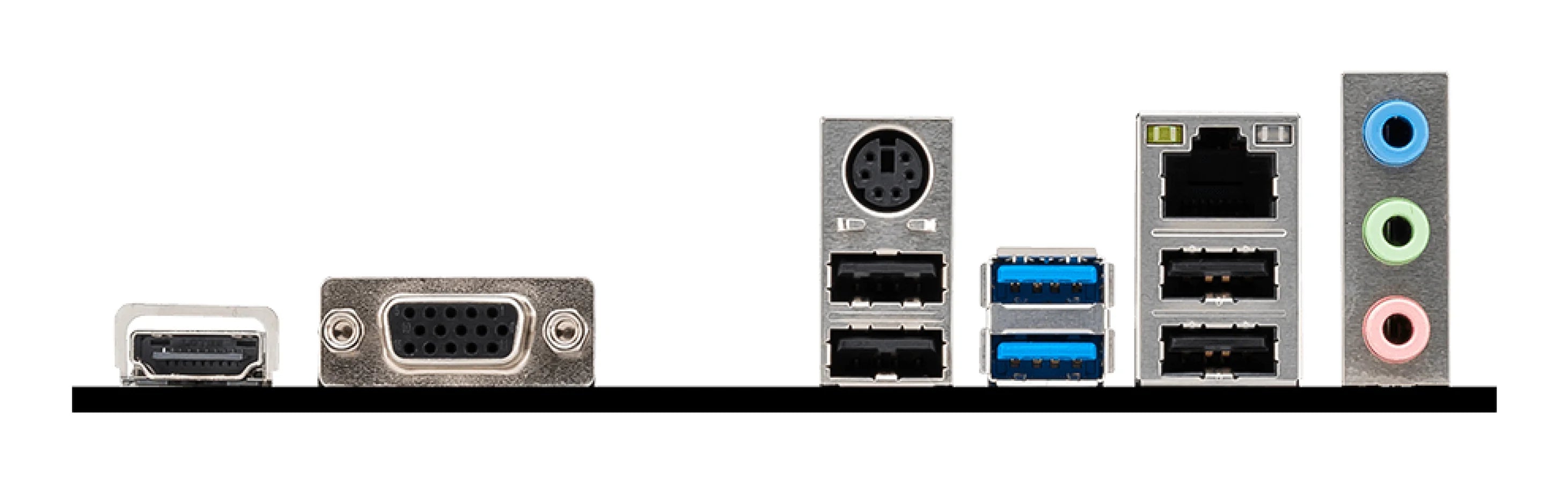

Rear panel I/O ports

• USB 2.0 ports quantity: 4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• Ethernet LAN (RJ-45) ports: 1
• PS/2 ports quantity: 1
• VGA (D-Sub) ports quantity: 1
• HDMI ports quantity: 1
• HDMI version: 1.4
• Headphone outputs: 1
• Line-in: Yes
• Microphone in: Yes

Network

• Ethernet LAN: Yes
• Ethernet interface type: Gigabit Ethernet
• LAN controller: Realtek 8111H

Features

• Motherboard chipset: Intel H470
• Audio chip: Realtek ALC897
• Audio output channels: 7.1 channels
• Component for: PC
• Motherboard form factor: micro ATX
• Motherboard chipset family: Intel

Expansion slots

• PCI Express x1 (Gen 3.x) slots: 1
• PCI Express x16 (Gen 3.x) slots: 1

Weight & dimensions

• Width: 202 mm
• Depth: 236 mm
