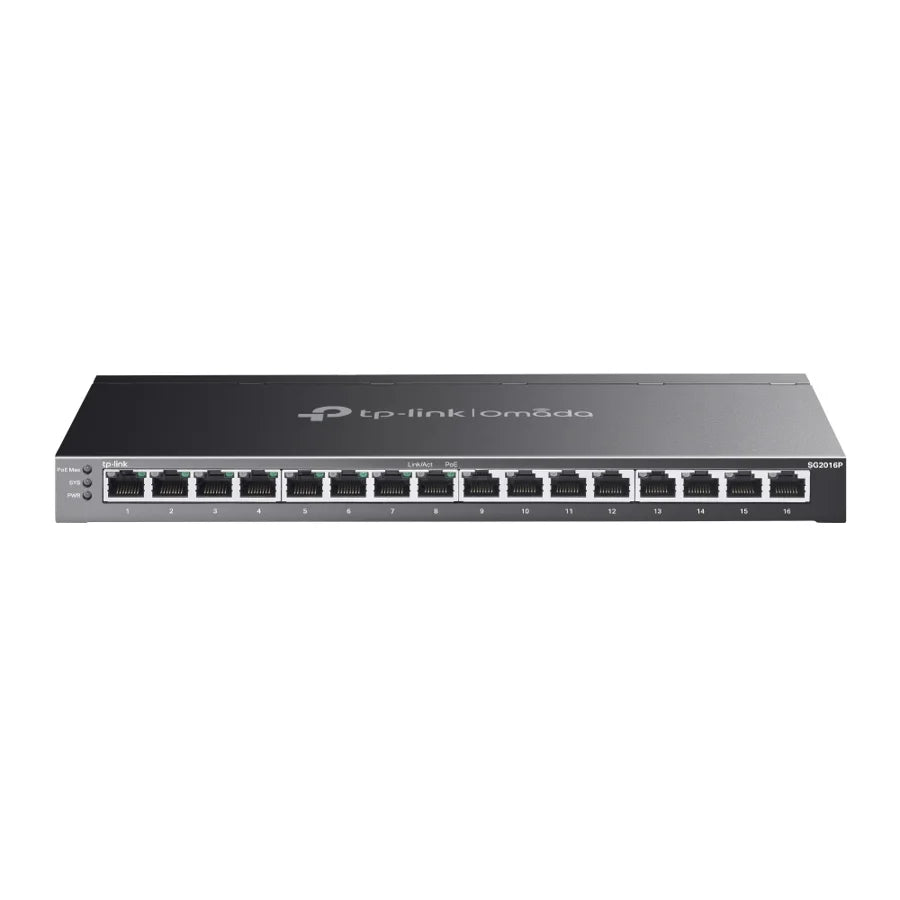

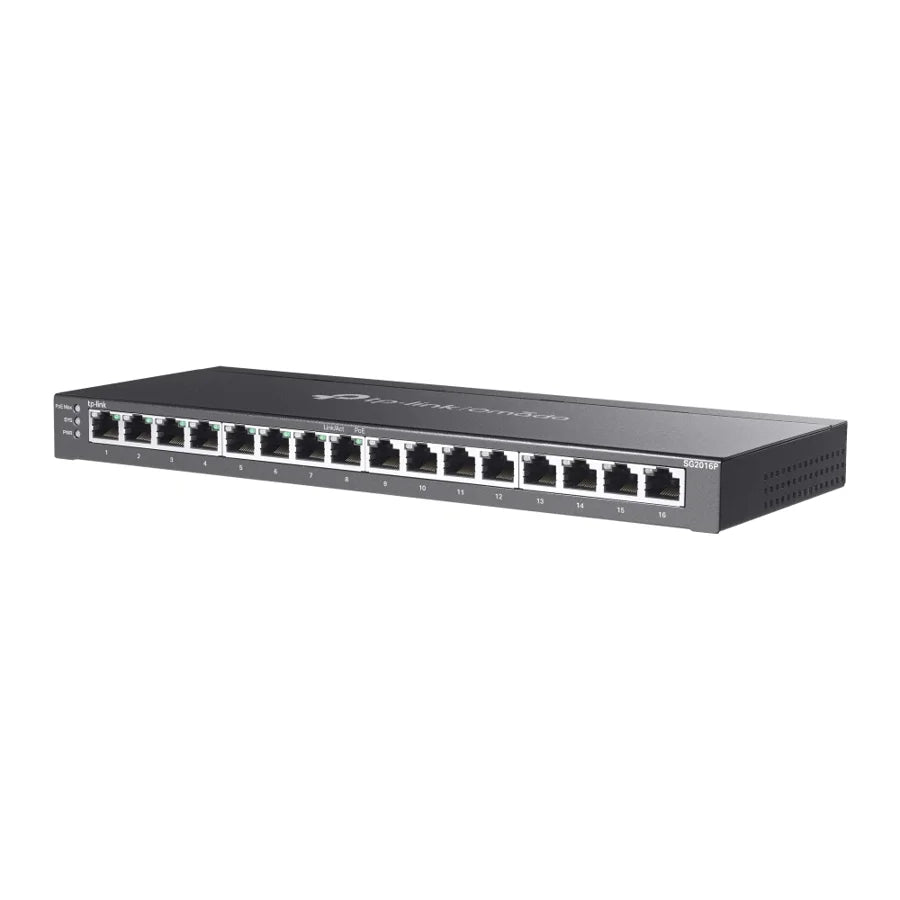

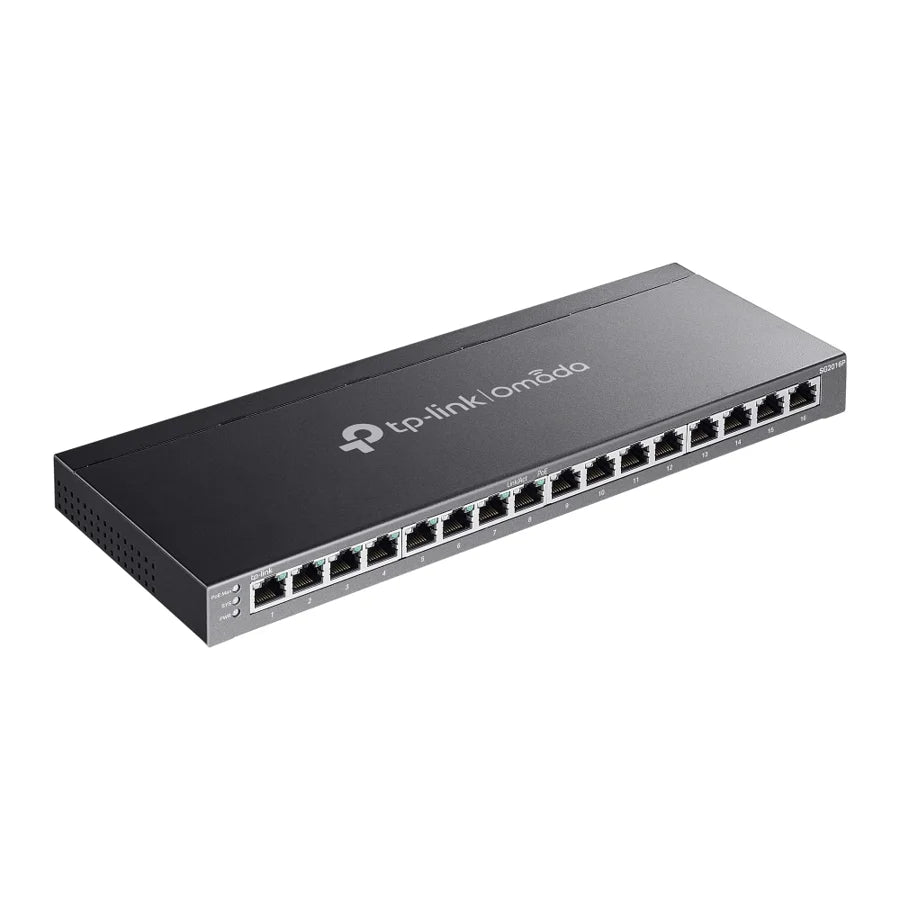

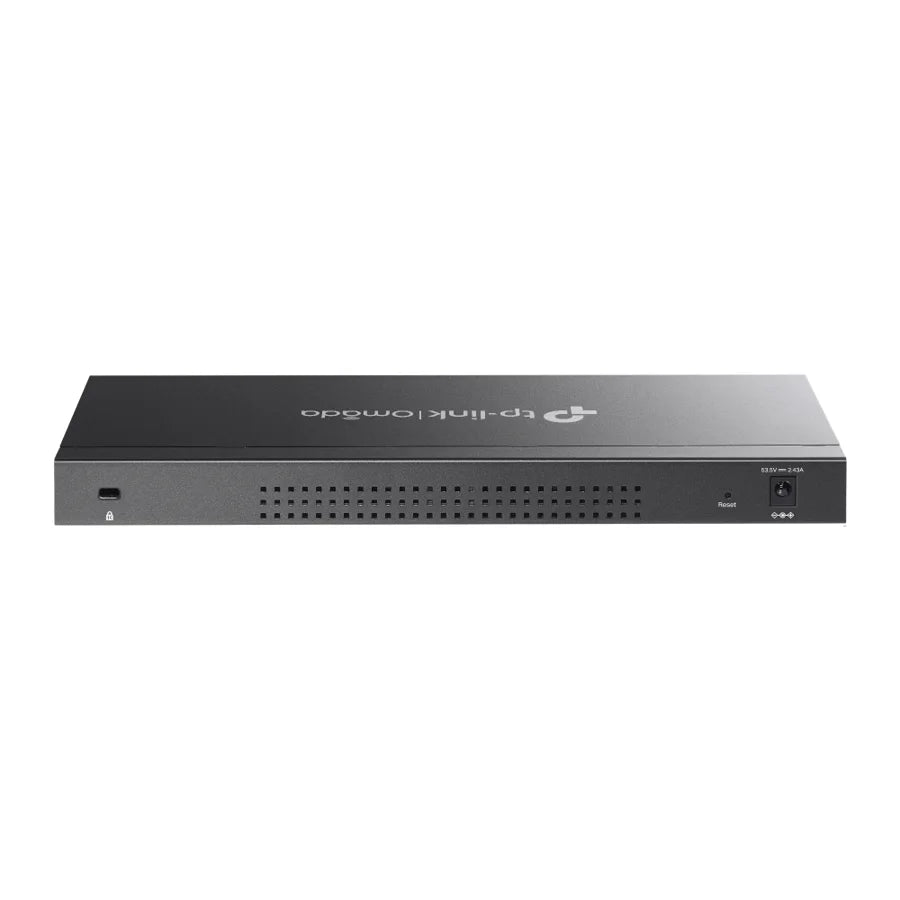

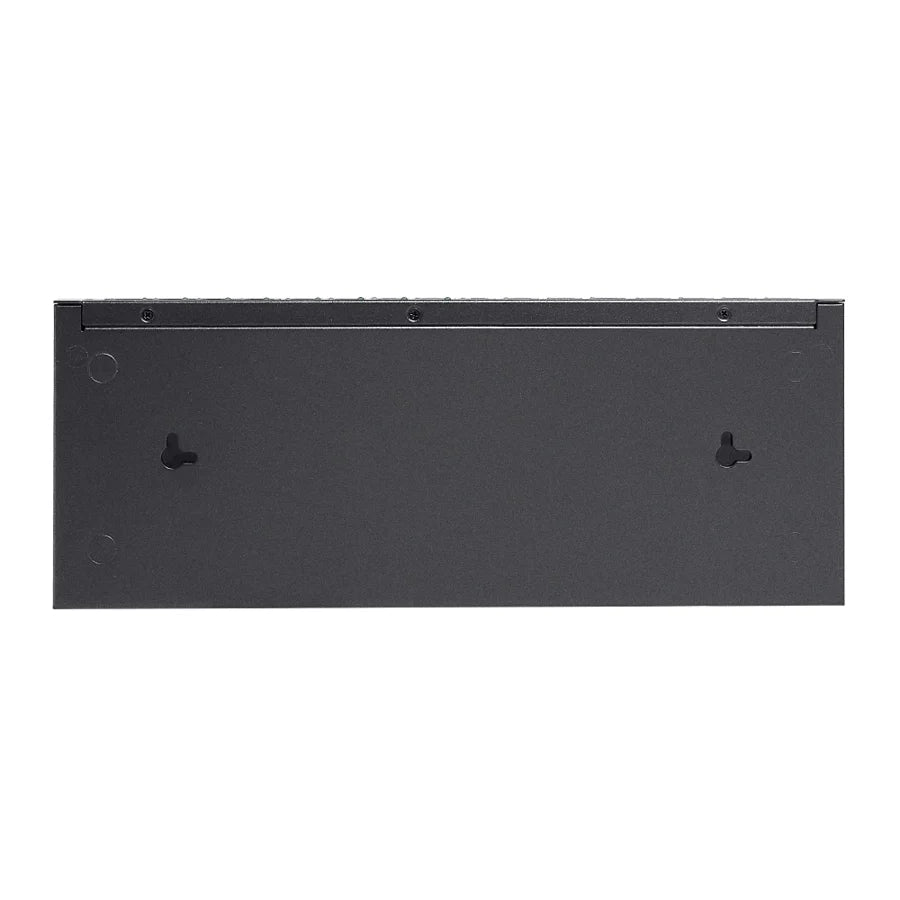

SG2016P TP-Link Redes Panamá

TP-Link - Switch - 16 - Gigabit Smart Switch- Panamá - TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.

Specifications

Management features

• Switch type: Managed
• Switch layer: L2/L2+
• Quality of Service (QoS) support: Yes
• Web-based management: Yes
• Cloud-managed: Yes
• ARP inspection: Yes
• Configuring Location Settings (CLI): Yes
• System event log: Yes
• MIB support: RFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925, RFC1757

Ports & interfaces

• Basic switching RJ-45 Ethernet ports quantity: 16
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Power connector: DC-in jack

Network

• Networking standards: IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3x
• 10G support: No
• Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
• Port mirroring: Yes
• Flow control support: Yes
• Link aggregation: Yes
• Broadcast storm control: Yes
• Rate limiting: Yes
• Auto MDI/MDI-X: Yes
• Spanning tree protocol: Yes
• Ethernet LAN data rates: 10,100,1000 Mbit/s
• Auto-negotiation: Yes
• VLAN support: Yes
• Virtual LAN features: Multicast VLAN, Tagged VLAN, Voice VLAN
• Number of VLANs: 4000

Data transmission

• Switching capacity: 32 Gbit/s
• Forwarding rate: 23.81 Mpps
• MAC address table: 8000 entries
• Number of queues: 8
• Jumbo frames support: Yes
• Jumbo frames: 9000
• Packet buffer memory: 4.1 MB

Security

• DHCP features: DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 snooping
• Access Control List (ACL): Yes
• IGMP snooping: Yes
• Security algorithms: EAP-MD5, HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS
• MAC address filtering: Yes
• SSH/SSL support: Yes
• BPDU filtering/protection: Yes
• IP-MAC-Port binding: Yes
• Authentication: Guest VLAN, MAC-based authentication, Port-based authentication
• Queue scheduling algorithms: SP, Weighted Round Robin (WRR)
• MAC address entries: Dynamic MAC address entries, Static MAC address entries

Multicast features

• Multicast support: Yes
• Multicast Listener Discovery (MLD) snooping: MLD v1, MLD v2

Protocols

• Supported network protocols: ICMP, TCPv6, UDPv6, Ping6, Tracert6, Telnet (v6), TFTP, TCP/UDP, DSCP/IP, SSLv3, TLS 1.2
• GARP VLAN Registration Protocol (GVRP): Yes
• IPv4 & IPv6 features: Dual stack IPv4/IPv6

Design

• Rack mounting: Yes
• Product colour: Black
• LED indicators: PoE, Power, System

Performance

• Firmware upgradeable: Yes
• Fanless: Yes

Power

• Power source: DC/PoE
• DC input voltage: 53.5 V
• Power consumption (max): 146.5 W

Power over Ethernet (PoE)

• Power over Ethernet (PoE): Yes
• Power over Ethernet plus (PoE+) ports quantity: 8
• Total Power over Ethernet (PoE) budget: 120 W

Operational conditions

• Operating temperature (T-T): 0 - 40 °C
• Storage temperature (T-T): -40 - 70 °C
• Operating relative humidity (H-H): 10 - 90%
• Storage relative humidity (H-H): 5 - 90%
• Heat dissipation: 499.98 BTU/h

Weight & dimensions

• Width: 286 mm
• Depth: 111.7 mm
• Height: 25.4 mm

Packaging content

• Cables included: AC
• Manual: Yes

Certificates

• Certification: CE, FCC, RoHS
