Z890M GAMING X Gigabyte Componentes Informáticos Panamá

Gigabyte - Motherboard - Micro ATX - LGA1851 socket - Intel Z890 - para Intel Core Ultra series - None - Z890M GAMING X- Panamá - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Specifications

Processor

• Processor manufacturer: Intel
• Processor socket: LGA 1851 (Socket V1)
• Compatible processor series: Intel Core Ultra (Series 2)
• Supported processor sockets: LGA 1851
• Maximum internal memory supported by processor: 256 GB

Memory

• Supported memory types: DDR5-SDRAM
• Number of memory slots: 4
• Memory slots type: DIMM
• Memory channels: Dual-channel
• ECC сompatibility: Non-ECC
• Supported memory clock speeds: 5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600 MHz
• Supported memory clock speed (max): 8800 MHz
• Maximum internal memory: 256 GB
• Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB

Storage controllers

• Supported storage drive types: HDD & SSD
• Supported storage drive interfaces: M.2, SATA III
• Number of HDDs supported: 7
• Number of storage drives supported: 4
• RAID support: Yes
• RAID levels: 0, 1, 5, 10

Graphics

• DirectX version: 12.0

Internal I/O

• USB 2.0 connectors: 2
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
• USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
• Number of SATA III connectors: 4
• Total number of SATA connectors: 4
• ATX Power connector (24-pin): Yes
• EPS power connector (8-pin): Yes
• TPM connector: Yes
• 12V power connector: Yes
• RGB LED pin header: Yes

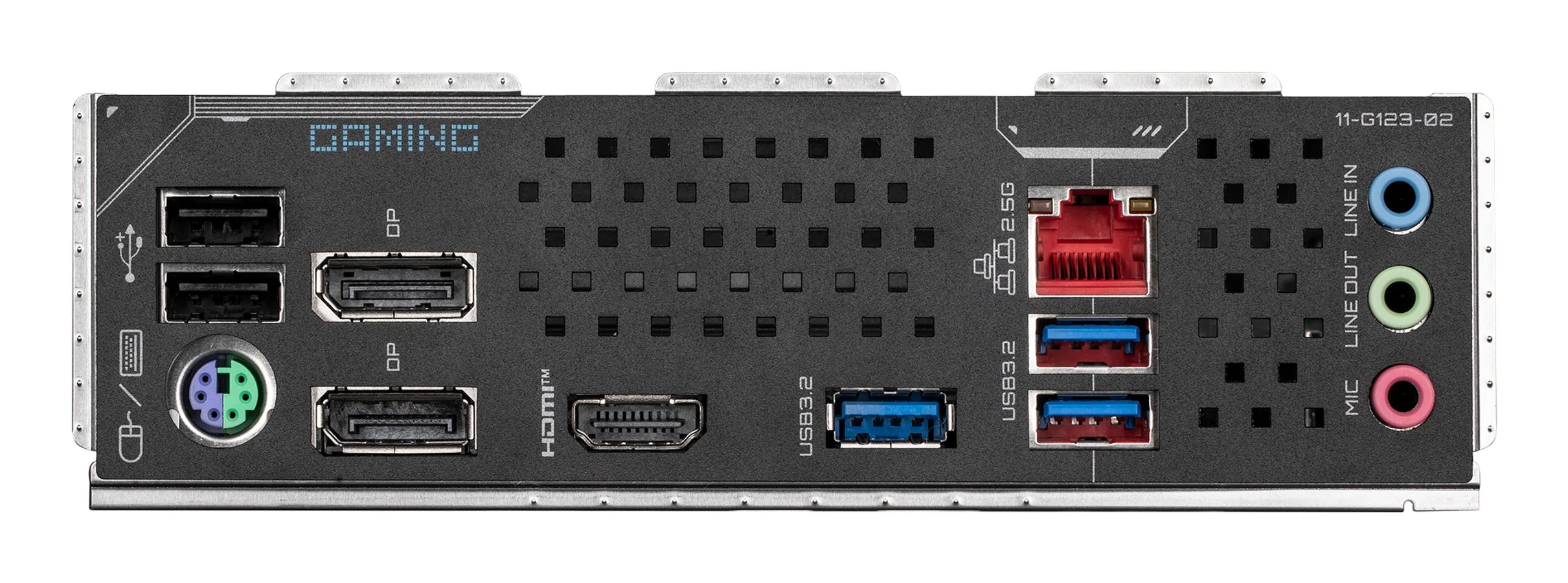

Rear panel I/O ports

• USB 2.0 ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• DisplayPorts quantity: 2
• Microphone in: Yes
• S/PDIF out port: Yes

Network

• Ethernet LAN: Yes
• Ethernet interface type: 2.5 Gigabit Ethernet
• Wi-Fi: No

Features

• Motherboard chipset: Intel Z890
• Audio output channels: 7.1 channels
• Product colour: Black
• PC health monitoring: Fan, Temperature, Voltage
• Component for: PC
• Motherboard form factor: micro ATX
• Motherboard chipset family: Intel
• Windows operating systems supported: Windows 10 x64, Windows 11 x64

Expansion slots

• PCI Express x16 slots: 1
• Number of M.2 (M) slots: 3

BIOS

• BIOS type: UEFI AMI
• BIOS memory size: 256 Mbit
• ACPI version: 5.0
• Clear CMOS jumper: Yes
• Clear CMOS button: Yes
• Desktop Management Interface (DMI) version: 2.7
• System Management BIOS (SMBIOS) version: 2.7

Logistics data

• Country of origin: China
• Products per shipping (inner) case: 1 pc(s)

Battery

• Battery weight: 3 g
• Lithium weight per battery: 0.07 g
• Number of battery cells: 1
• Battery technology: Lithium-Manganese Dioxide (LiMnO2)
• Battery type: CR2032

Packaging data

• Package width: 270 mm
• Package depth: 268 mm
• Package height: 68 mm
• Package weight: 1.22 kg

Weight & dimensions

• Width: 244 mm
• Depth: 244 mm
• Height: 35 mm

Packaging content

• Batteries included: Yes
• Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software

Other features

• Weight: 1.1 kg

Technical details

• Warranty period: 3 year(s)
